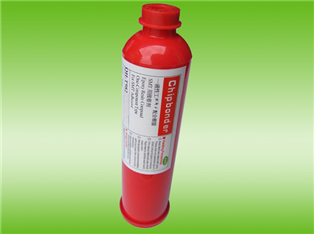

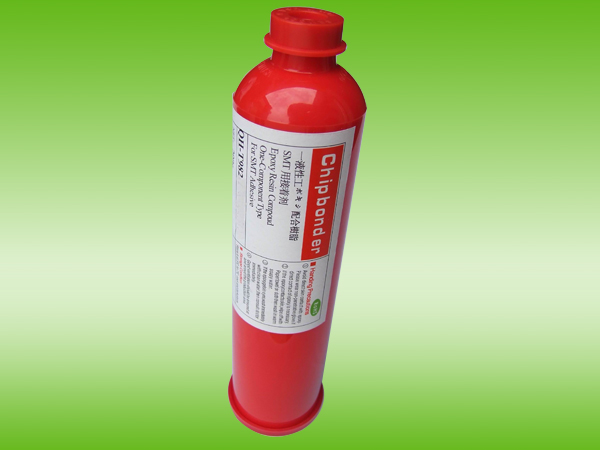

Product name: QH#L978
Product Description: Application Description
For high-speed screen printing
product features
1. Low temperature hardening.
2. Ultra-high-speed coating and a small amount of coating can still maintain a stable shape without wire drawing and collapse.
3. Various surface adhesion parts can obtain stable bonding strength.
4. Excellent stability.
5. It has high heat resistance and excellent electrical properties.
| ingredients | epoxy resin |
| Exterior | red paste |
| proportion | 1.25 |
| Viscosity25℃,rpm | 300,000mPa·S(300 cps) |
| Thixotropy Index | 6.9(1rpm/10rpm) |
|
Thixotropy Index 2125C Mini-mold tr SOP·IC 16P |
44N(4.5kgf)0.2mgr twin 45N(4.6kgf)0.3mgr twin 92N(9.4kgf)0.8mgf single×2 |
|
Electrical Characteristics Volume impedance coefficient Insulation resistance initial value After processing* Dielectric constant Dielectric positive connection |
3.6×1016Ω·cm JIS K6911 1.2×1014Ω JIS Z3197 1.2×1012Ω 3.12/1MHZ JIS K6911 0.012/1MHZ JIS K6911 |
| Storage Conditions | Store in refrigerator below 10°C |
