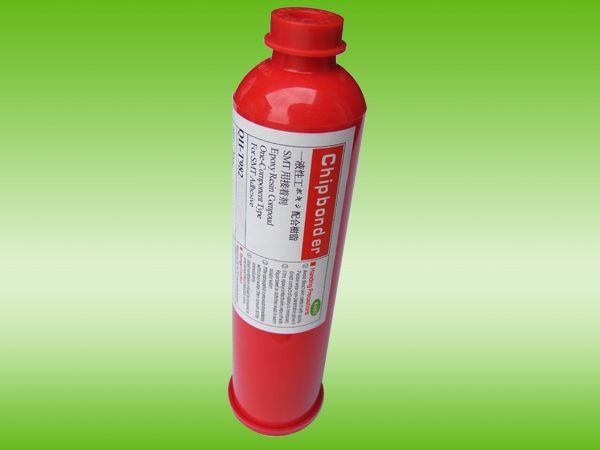

Product name: QH#T984H
Product Description: Application Description
For high-speed dispensing, the speed is more than 40,000 points per hour.
product features
1. Low temperature hardening.
2. Ultra-high-speed coating and a small amount of coating can still maintain a stable shape without wire drawing and collapse.
3. Various surface adhesion parts can obtain stable bonding strength.
4. Excellent stability.
5. It has high heat resistance and excellent electrical properties.
| ingredients | epoxy resin |
| Exterior | red paste |
| proportion | 1.18 |
| Viscosity 25℃,rpm | 280,000mPa·S(310 cps) |
| Thixotropy Index | 6.9(1rpm/10rpm) |
| then strength 2125C Mini-mold tr SOP·IC 16P |
46N(4.5kgf)0.2mgr twin 48N(4.6kgf)0.3mgr twin 96N(9.4kgf)0.8mgf single×2 |
|
Electrical Characteristics Volume impedance coefficient Insulation resistance initial value After processing* Dielectric constant Dielectric positive connection |
3.6×1016Ω·cm JIS K6911 1.2×1014Ω JIS Z3197 1.2×1012Ω 3.12/1MHZ JIS K6911 0.012/1MHZ JIS K6911 |
| Storage Conditions | Store in refrigerator below 10°C |
